产品描述：多层陶瓷堆叠工艺。 产品特点：16.5 x 2.0 x 0.52mm 4.7KHz。 产品用途：水流量测量。
产品描述：
多层陶瓷堆叠工艺。
产品规格：
16.5 x 2.0 x 0.52mm 4.7KHz。
产品用途：
水流量测量。

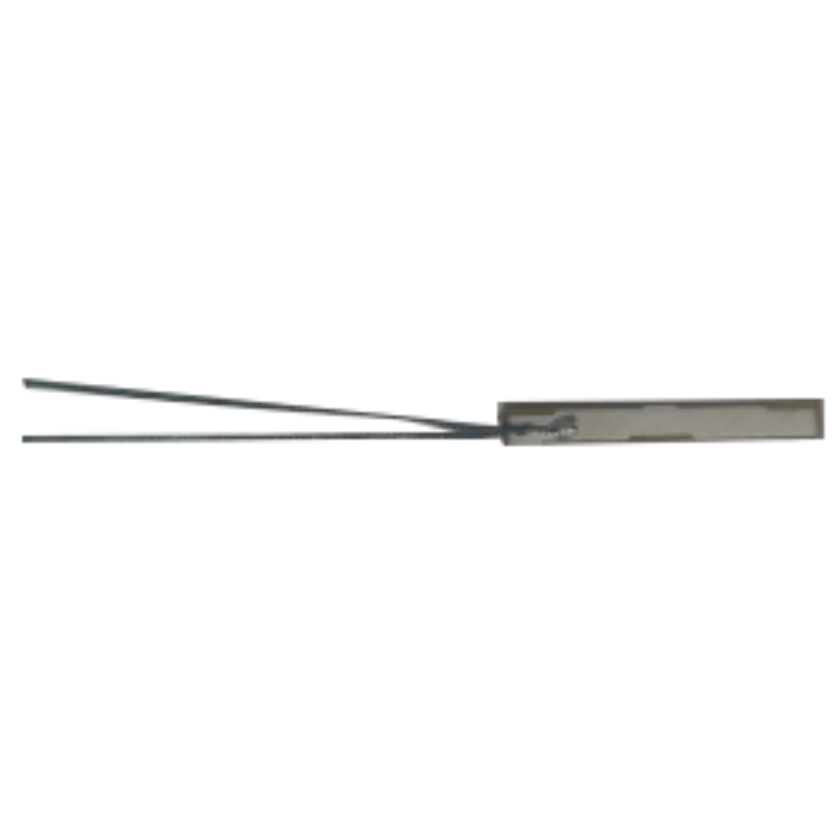

产品实物图：

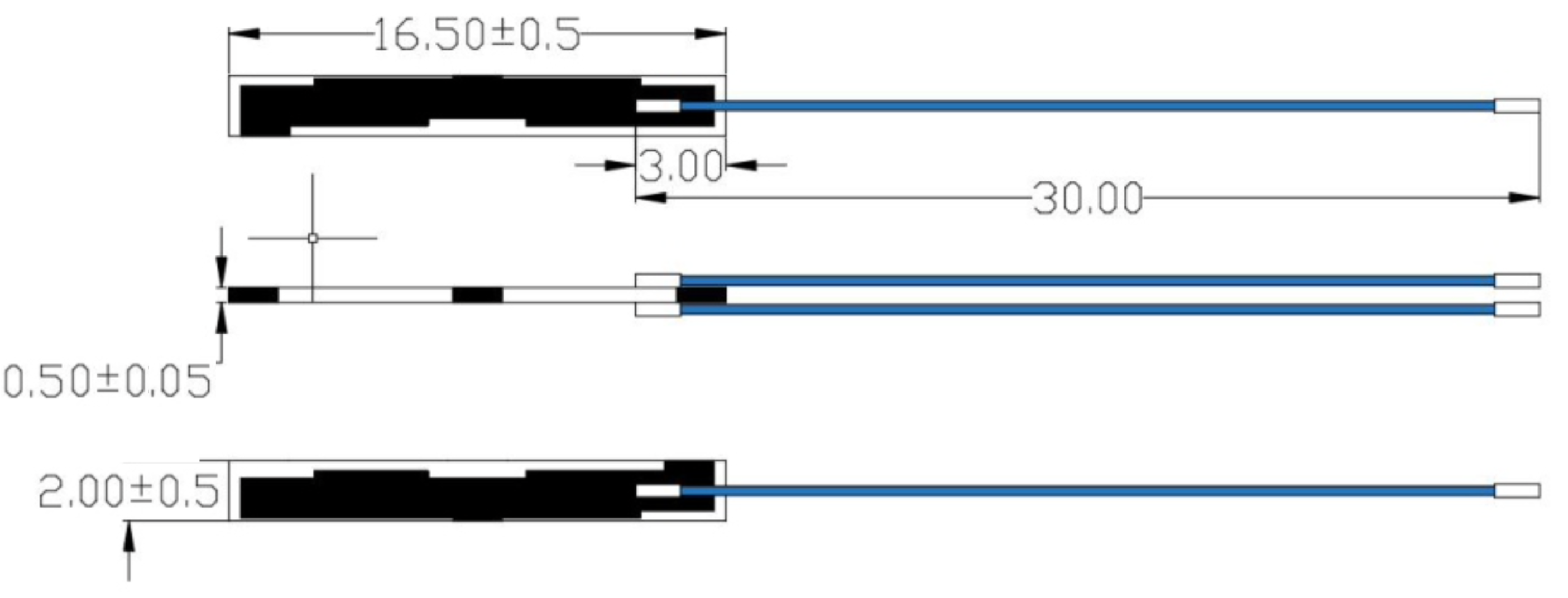

产品尺寸图：
产品参数：
| Item | Unit | Specification | Condition |
| Resonant Frequency 频率 | KHz | 4.7±0.5 | The resonant frequency is suitable only for piezo element without wire. |
| Electrostatic Capacity 电容 | pF | 11000±20% | @ 100Hz 1V |
| Dielectric Loss Stand 损耗 | <5% | ||
| MAX.Input Voltage 最大输入电压 | Vp-p | MAX .20 | |
| Dimension 尺寸 | mm | 16.5x2.0x0.52 | See appearance drawing |
| Metal Material 材料 | P5H | ||
| Weight (MAX) 最大重量 | gram | 0.2 | |
| Leading Pin 引出端子 | 裸片或是焊线 | See appearance drawing | |
| DC Resistance | M Ω | MIN 10 | |
| Operating Temperature | ℃ | -20~+70 | |
| Storage Temperature | ℃ | -30~+80 | |
| Environmental Protection Regulation | RoHS | Piezoelectronic device is exempted from RoHS. Lead contain restriction. |
